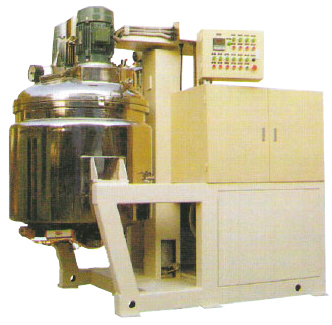

ZG700A vacuum homogenizing machine

ZG700A vacuum homogenizing machine is the main type of ZG series. It has 3 sets of upper-position type mixers that can be set up for 2 modes: one is frame mode mixing & double high speed dissolver; the other is frame mode mixing, high speed dissolver and homogenizer. It can meet various working procedure requirements of costumers.
    ZG700A vacuum homogenizing machine with a vacuum pump and a hydraulic pump has performance of good entirety, easy installation,flexible use and full functions.
    ZG700A vacuum homogenizing machine is suitable for medium scale industrial production of toothpaste, cosmetic, ointment, food, etc.



Main Technical Parameters:

 Working Volume:700L

 Hydraulic pump:Y90s-4 1.5kw

 Stirring speed:10-40(80)r.p.m.

 Total power:32kw

 Stirring power:4kw

 Pressure air:0.6Mpa

 high stirring speed:1000r.p.m.

 Dimensions(L*W*H):1920*3910*3200mm

 high speed stirring power:7.5kw

 Lifting height of cauldron lid:1000mm

 speed of homogenizer:3000r.p.m.

 Power supply:3~380V, 50Hz

 power of homogenizer:15kw

 Total weight of machine:3000kg

 Vacuum pump:2sk-1.5P1 4kw
